JUNIPER: EX9200 LINE OF PROGRAMMABLE ETHERNET SWITCH
JUNIPER: EX9200 LINE OF PROGRAMMABLE ETHERNET SWITCH
Flexibility and scalability for business agility and growth.
The EX9200 line of Ethernet switches provides a programmable, flexible, and scalable foundation for delivering mission-critical applications in enterprise campus and data center core environments.
The EX9200 line of programmable Ethernet switches simplifies the deployment of cloud applications, server virtualization, and rich media collaboration tools in enterprise campus and data center core and aggregation environments.
In the enterprise campus, the EX9200 enables collaboration and provides simple and secure access for the delivery of mission-critical applications. In the data center, it simplifies operations to align the network with fast-changing business requirements.
The EX9200 switches also serve as the foundation for the Junos® Fusion Enterprise architecture, a new standards-based approach for creating an open, highly scalable switch fabric for the enterprise campus. Junos Fusion Enterprise dramatically simplifies campus deployments by collapsing the entire network into a single management point, with the EX9200 as its core. Junos Fusion Enterprise can also serve as the shared core for enterprise campus environments that have on-premise data centers.

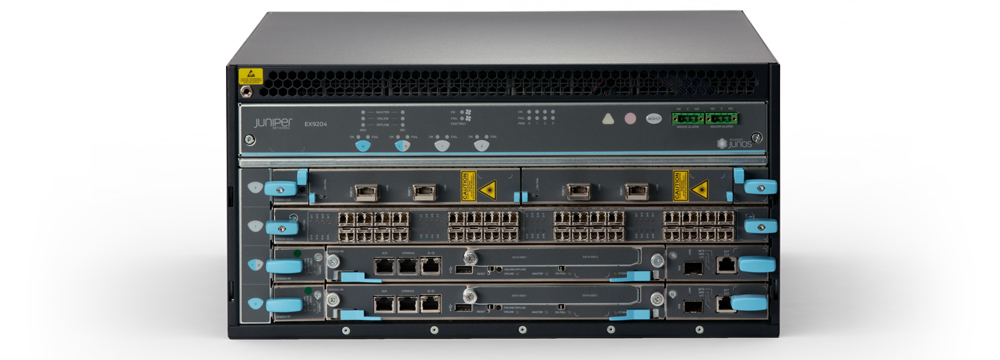

Three EX9200 switches are available: the EX9204, EX9208 and EX9214. The EX9200 chassis deliver up to 240 Gbps (full duplex) per slot. A pass-through midplane design supports capacity of up to 13.2 Tbps for built-in migration to next-generation deployments. Any combination of 1GbE, 10GbE, and 40GbE interfaces can be used, and the switches include support for 100GbE cards when available.
• Field-proven Juniper technology—including high-performance ASICs, a carrier-class architecture, and the Junos OS—enables EX Series switches to provide carrier-class reliability for every application.
• Security risk management integrates network access control (NAC) capabilities to help EX Series switches dynamically deliver network protection, guest access, and identity-based quality of service (QoS).
• Wire-speed performance with high densities of 1GbE, 10GbE, 40GbE and 100GbE ports dramatically simplifies network topologies and operations.
• Eight QoS queues per switch port ensure proper prioritization of voice, video, and multiple levels of data traffic, with room to converge other networks, such as building automation and video security systems.
• Innovative, cost-effective switch design enables new network architectures that reduce cost and complexity, while unified management and automation tools consolidate system monitoring.
| Form Factor | EX9204: 4-slot modular chassis, EX9208: 8-slot modular chassis, EX9214: 14-slot modular chassis |
|---|---|
| Dimensions (W x H x D) | EX9204: 17.5 x 8.7 x 27.8 in (44.5 x 22.1 x 70.5 cm) 5 rack units, EX9208: 17.5 x 14 x 27.8 in (44.5 x 35.6 x 70.5 cm) 8 rack units, EX9214: 17.5 x 27.8 x 27.8 in (44.5 x 70.5 x 70.5 cm) 16 rack units |
| Backplane Speed | EX9204: Up to 1.6 Tbps per chassis, EX9208: Up to 4.8 Tbps per chassis, EX9214: Up to 13.2 Tbps per chassis |
| Data Rate | EX9200-32XS: Up to 240 Gbps, EX9200-40F: Up to 40 Gbps, EX9200-40T: Up to 40 Gbps, EX9200-4QS: Up to 120 Gbps |
| Throughput | Up to 240 Gbps per slot (full duplex) on all chassis |
| 40GBASE QSFP + Port Densities | EX9204: 12 (EX9200-4QS line card), EX9208: 28 (EX9200-4QS line card), EX9214: 48 (EX9200-4QS line card) |
| 100GBASE CFP Port Densities | EX9204: 6 using EX9200-2C-8XS line card (future), EX9208: 10 using EX9200-2C-8XS line card (future), EX9214: 20 using EX9200-2C-8XS line card (future) |
