JUNIPER: ACX4000 IS A COOLED ACCESS ROUTE

2.5 U form factor and environmentally hardened

The 2.5 U environmentally hardened ACX4000 provides high-performance mobile access running on the Junos operating system.

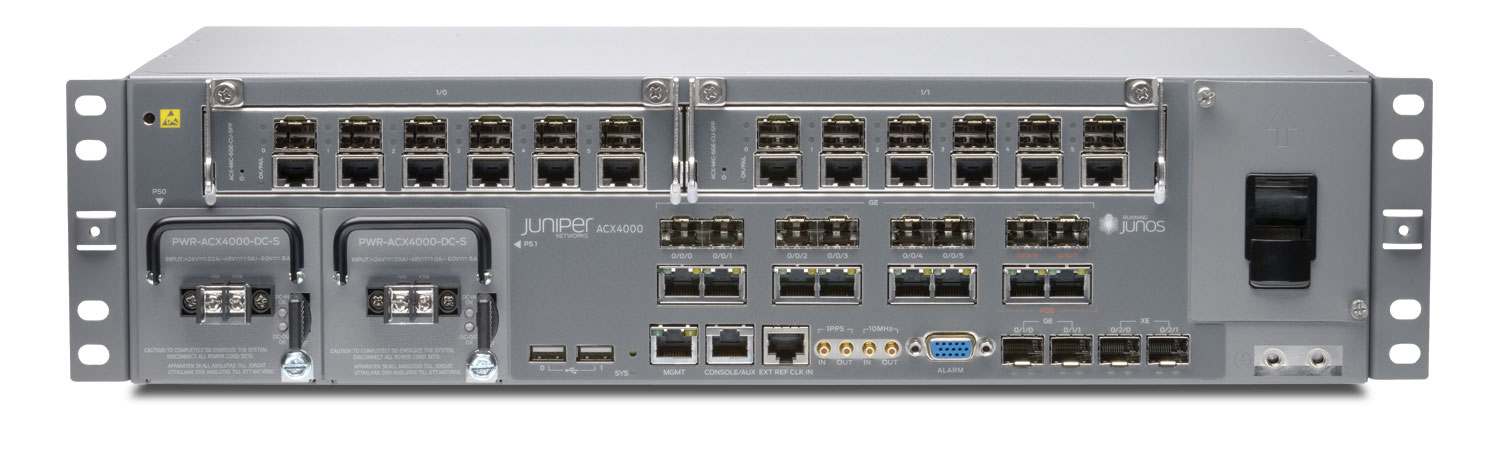

The ACX4000 is a 2.5 U, actively cooled access router that is environmentally hardened for field deployment. This versatile, high-performance mobile access platform runs on the Junos operating system.

The ACX4000 has two Modular Interface Card (MIC) slots that can house 16 T1/E1 ports, 6 GbE copper/fiber combination ports, or 4 CHOC3/STM-1 ports, creating a mobile access platform versatile enough for any deployment. Besides 2 MIC slots, the platform also provides a number of fixed ports that include 2x 10GbE, 2x GbE SFP, or 8x GbE combination (copper/fiber).

This universal access routing solution is optimized to enhance the mobile subscriber experience while significantly improving network monetization for service providers.

• Adaptive Service Architecture has operational intelligence for the access network to grow with business needs.

• Flexible Architecture supports carrier Ethernet, L2, L3, MPLS, traffic engineering, CAC, and simplified service provisioning and operation.

• Rapid, Remote Provisioning for easy management is provided using Junos Space Services Activation Director.

• Scale and Performance up to 60 Gbps with GbE and 10GbE support facilitate the move to 3G/4G/LTE, wide interface range for T1/E1, GbE, 10GbE, and PoE++.

• Clocking Technologies include SyncE and IEEE 1588-2008 for highest quality of experience (QoE).

• Junos SDK ensures easily customized provisioning and integration with third-party apps and tools.

System Throught Up to 60 Gbps
Interface Support 8xGbE Combo (Copper/Fiber) (with PoE++ on two ports)
2xGbE SFP
2x10GbE SFP+
2.5 RU
ETSI 300
2 MIC slots with MIC options:
6xGbE Combo (Copper or SFP)
4xCHOC3/STM-1/1xCHOC12/STM-4
16x T1/E1
Dimensions (W x H x D) 17.5 x 4.375 x 9.25 in (44.5 x 11 x 23.5 cm)
Maximum Weight 23.8 lb (10.82 kg) (Fully configured 2 PSU, 2MICs)
Power (DC) -48V telco nominal or
-60V telco nominal or
+24 VDC nominal
Power (AC) 90 to 240 V AC
Power Draw 90 to 240 Volt AC
150W w/o MICs; 45W for each MIC; 65W for each PoE++ port
