JUNIPER: SRX550 SERVICES GATEWAY

Secure services gateways for medium-to-large branch locations.

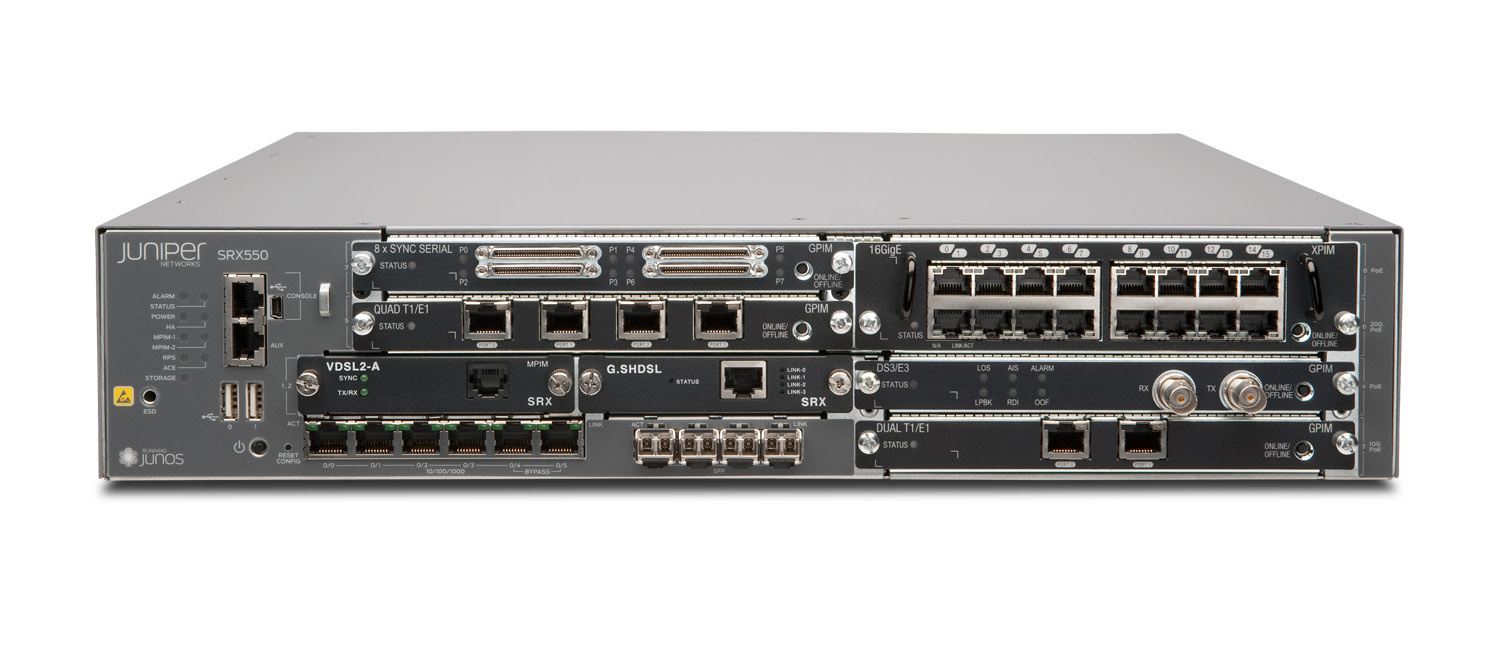

The SRX550 Services Gateway is a robust, highly flexible solution for next-generation security, delivering enterprise-class networking for protecting today’s medium-to-large branch locations.

The SRX550 Services Gateway is an all-in-one solution that consolidates security, routing, switching, and WAN connectivity into a single 2 U device. It supports up to 5.5 Gbps firewall, 1 Gbps IPsec VPN, and 800 Mbps intrusion prevention system (IPS).

The SRX550 supports next-generation firewall capabilities such as intrusion prevention, application visibility and control, and unified threat management (UTM) features including antivirus, antispam, and enhanced Web filtering. Integrated security intelligence offers adaptive threat protection against command and control (C&C)-related botnets, malware, and Web application threats. The SRX550 also enforces policies based on GeoIP data from Juniper-provided feeds. IT organizations can use their own custom and third-party feeds for advanced threat protection.

The SRX550 is optimized for securing and connecting midsized or large branch locations that are geographically dispersed. It provides cost-effective, scalable integration of routing, security, and other midrange applications for branch sites. IT staff can deploy and manage SRX550 appliances in dispersed sites using the centralized Junos® Space Security Director management platform.

NSS Labs, the world’s leading information security company, recommends the SRX550 because it delivers outstanding performance—even under the highest loads—in an architecture that consolidates next-generation firewall security with rich networking capabilities.

• Comprehensive protection includes multigigabit firewall, security intelligence via Spotlight Secure, policy enforcement based on GeoIP data, and UTM (including IPS, application security, user role-based firewall controls, antivirus, antispam and Web filtering), NAT, DoS and QoS.

• Scalable performance enables additional services without degradation.

• System and network resiliency ensures carrier-class reliability from redundant hardware and components, and Junos OS software.

• On- and off-box automation capabilities and centralized network security management simplify the deployment and maintenance of the SRX550 across geographically dispersed locations.

• Easy-to-use on-box GUI for individual device management.

• WAN interface flexibility meets the needs of any network.

• Network segmentation allows administrators to tailor security and policies.

• Robust Routing Engine separates data and control planes to allow deployment of consolidated routing and security devices.

Junos OS Software version tested  Junos OS 12.1
Firewall performance (max)  5.5 Gbps
IPS performance  800 Mbps
VPN performance  1.0 Gbps
Maximum concurrent sessions  375.000
New sessions/second (sustained, TCP, 3 way)  27.000
Maximum security policies  7.256

Attachment:

Data Sheet
