Optimized to secure large enterprise edges and data centers

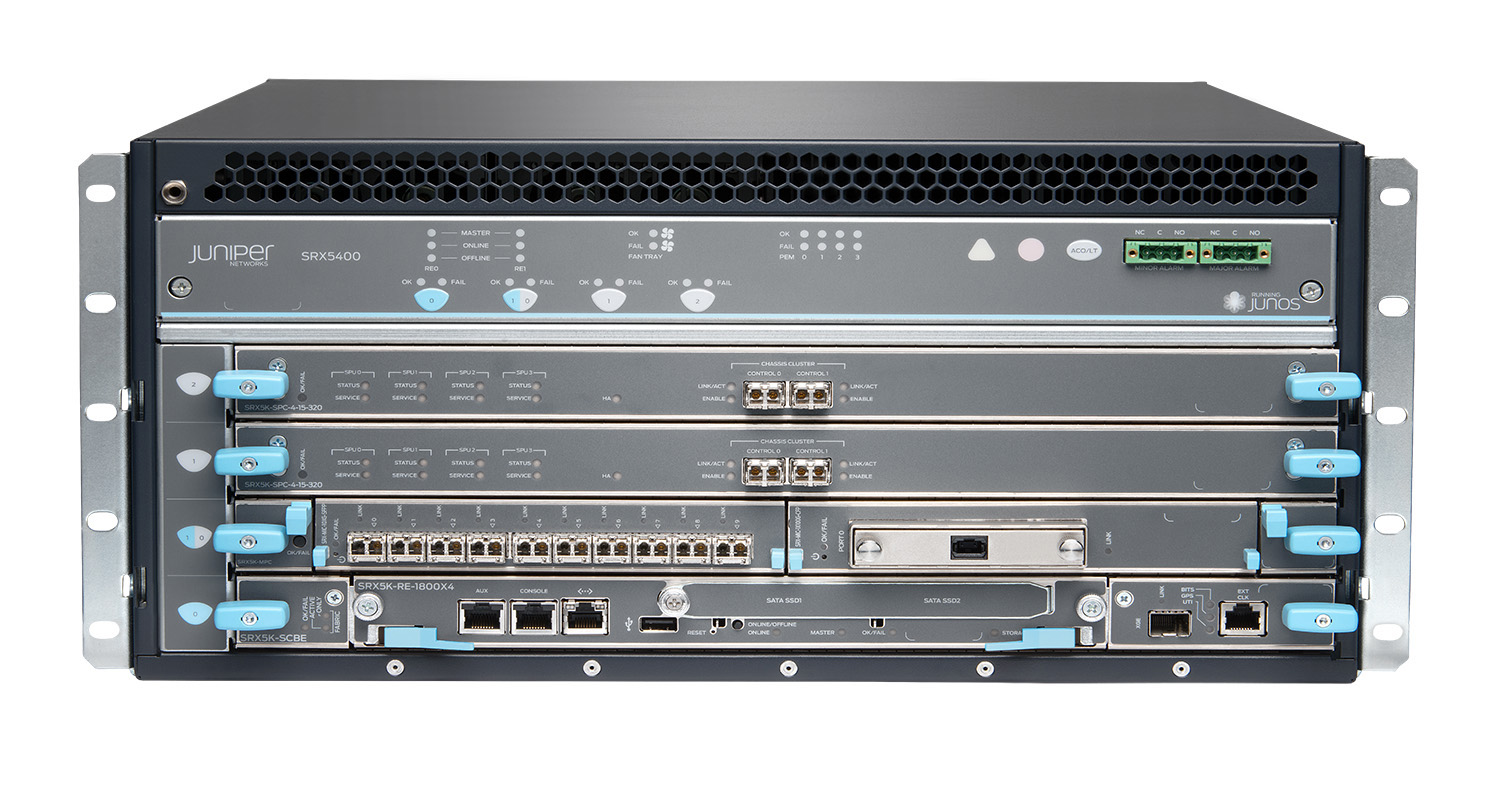

The SRX5400 Services Gateway is a small-footprint security platform based on an innovative architecture that delivers outstanding performance and service integration.

The SRX5400 Services Gateway is a next-generation security platform ideally suited for large enterprise, service provider, and public-sector networks. Based on a sophisticated architecture and using high-performance line cards, the SRX5400 provides unrivaled connectivity, performance, and service integration.

The SRX5400 represents the most open, scalable security platform in the industry. Integrated threat intelligence offers adaptive, customized protection against command and control (C&C)-related botnets and malware, as well as dynamic policy enforcement based on GeoIP and threat data, with intelligence from Juniper-provided feeds. In companies that have their own threat collection capabilities, you can also leverage the SRX5400 as an enforcement point for custom and third-party feeds, protecting against advanced threats unique to your industry.

Superior price/performance and a small footprint make the SRX5400 ideal for securing enterprise edges and data centers, service provider infrastructures, and next-generation services and applications.

The SRX5400 supports firewall performance of up to 480 Gbps, with advanced anti-threat capabilities and an unprecedented 28 million concurrent user sessions on a highly reliable system, with six-nines availability. It offers 10GbE, 40GbE, and 100GbE connectivity options for maximum flexibility.

• Comprehensive protection includes multigigabit firewall; open, actionable threat intelligence via Spotlight Secure; dynamic policy enforcement based on GeoIP and Command & Control (C&C) threat data; and support for custom and third-party threat feeds.
• Advanced security services include IPS, application security (AppSecure), user role-based firewall controls, UTM (antivirus, antispam, Web filtering), Network Address Translation (NAT), denial of service (DoS), and quality of service (QoS).
• Express Path, an optimization capability available on the next-generation line cards (IOCII), securely optimizes SRX5400 performance to improve IMIX bandwidth by identifying traffic flows that do not require additional inspection or deep processing.
• Scalable performance enables additional services without degradation.
• System and network resiliency ensures six nines of carrier-class reliability from redundant hardware and components, as well as Junos OS software.
• Interface flexibility meets the needs of any network.
• Network segmentation allows administrators to tailor security and policies.
• Robust Routing Engine separates data and control planes to allow use of consolidated routing and security devices.

Junos OS Software version tested  Junos OS 15.1×49
Firewall performance (max)  65 Gbps (480 Gbps with Express Path)
IPS performance  22 Gbps
VPN performance  35 Gbps
Maximum concurrent sessions  42 million
New sessions/second (sustained, TCP, 3 way)  420,000
Maximum security policies  Unrestricted


Data Sheet
