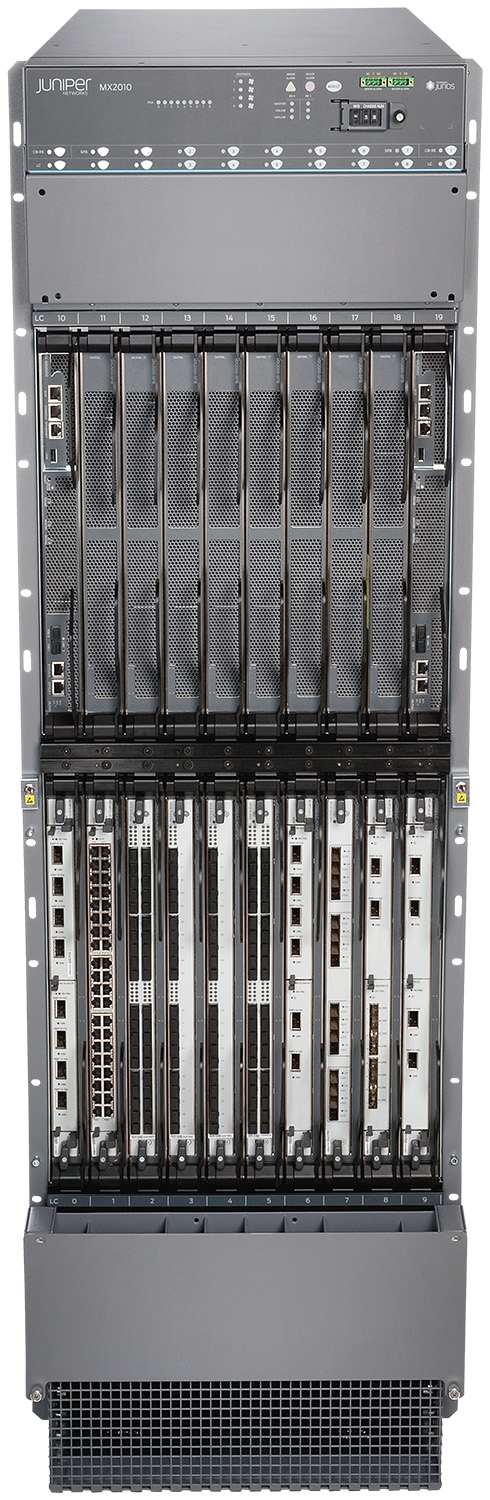

JUNIPER: MX2010 3D UNIVERSAL EDGE ROUTER

High capacity, performance, and density.

The MX2010 3D Universal Edge Router presents 40 Tbps of system capacity and the ability to accommodate long-term growth of broadband traffic, subscribers, and services

The SDN-ready MX2010 3D Universal Edge Router is a high-capacity, high-performance edge routing platform that delivers 40 Tbps of system capacity, providing very high densities of 10GbE, 40GbE, and 100GbE interfaces.

With support for up to 16 Tbps of bidirectional throughput, the MX2010 also offers comprehensive broadband subscriber management and agile service integration that includes deep packet inspection and carrier-grade NAT (CGNAT). Additionally, the MX2010 comes equipped with sophisticated timing and virtualization capabilities that meet the stringent requirements of mobile services.

With its scale, reliability, and industry-leading feature set, the MX2010 is ideal for edge, consolidated edge/core, and core applications. It enables a wide range of business and residential services, including mobile transport and backhaul, business VPN services, next-generation broadband multiplay services, and high-volume Internet data center internetworking.

• High scale and density, with 40 Tbps of system capacity and support for up to 960 10GbE, 240 40GbE, or 160 100GbE interfaces.

• Provides an investment-protecting upgrade path for existing MX Series customers, with support for the same Modular Port Concentrators (MPCs) as the MX240, MX480 and MX960 routers.

• Combines support for carrier-grade Junos® OS with a fully redundant architecture for nonstop service availability under any network conditions.

System Capacity  40 Tbps
Switch Fabric Capacity per Slot  2 Tbps
DPCs and/or MPCs per Chassis  10
Chassis per Rack  1
Dimensions (W x H x D)  19.0 x 59.50 x 36.20 in (48.26 x 151.13 x 91.95 cm)
Maximum Weight  1,000 lbs / 453.6 kg
Mounting  Four-post rack
