| System Capacity | 80 Tbps |
|---|---|
| Switch Fabric Capacity per Slot | 2 Tbps |
| DPCs and/or MPCs per Chassis | 20 |
| Chassis per Rack | 1 |
| Dimensions (W x H x D) | 19.0 x 78.75 x 36.20 in (48.26 x 200 x 91.95 cm) |
| Maximum Weight | 1,500 lbs / 680 kg |
| Mounting | Four post Rack |

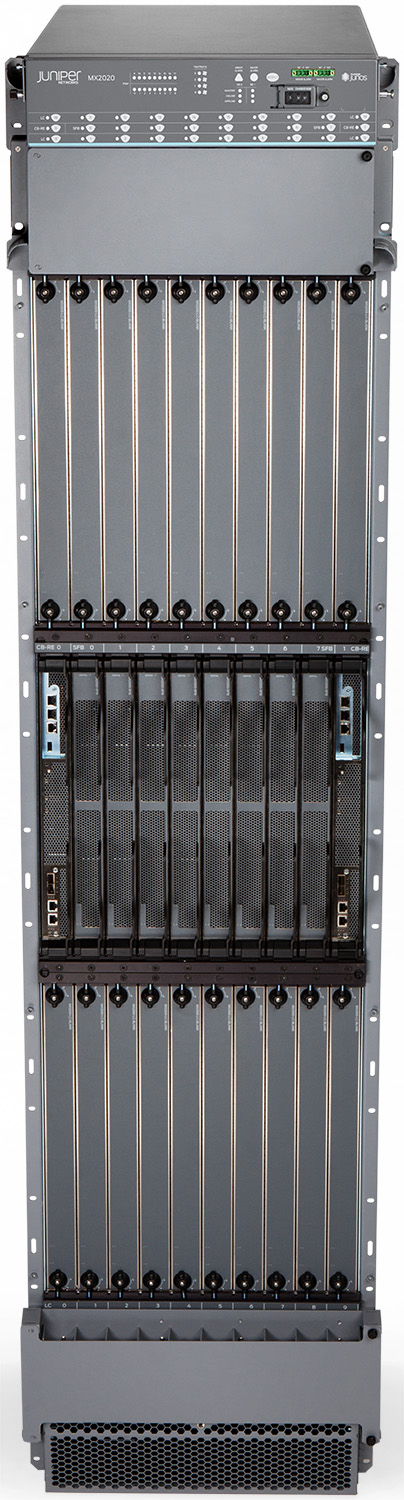

JUNIPER: MX2020 3D UNIVERSAL EDGE ROUTER
JUNIPER: MX2020 3D UNIVERSAL EDGE ROUTER
Scale, performance, and density for the next decade.
The MX2020 3D Universal Edge Router is the highest capacity single-chassis edge router in the industry.
Supporting 80 Tbps of system capacity today, the SDN-ready MX2020 3D Universal Edge Router offers the highest capacity, performance, and density in a single-chassis edge routing platform.
Each MX2020 supports up to 1,920 10GbE interfaces, 480 40GbE interfaces, or 320 100GbE interfaces, as well as legacy SONET/SDH, ATM, and PDH connectivity and broadband subscriber management. Its sophisticated timing and virtualization capabilities meet the stringent requirements of mobile services. With its scale and industry-leading feature set, including advanced power saving options, the MX2020 is ideal for edge, consolidated edge, and core applications.
The MX2020 delivers the highest levels of reliability with a resilient and fully redundant architecture. It shares common routing, control, and switching components and port and service cards with other MX Series platforms, providing investment protection for existing MX Series customers.
• Scales to 80 Tbps and beyond, providing investment protection for future traffic demands.
• Super-high density of 10GbE, 40GbE, and 100GbE interfaces.
• Advanced power design ensures exceptional efficiency.
• High-reliability ensures nonstop service availability for strong productivity and end-user experience.
