JUNIPER: EX4300 1 GIGABIT ETHERNET (GBE) SWITCH
JUNIPER: EX4300 1 GIGABIT ETHERNET (GBE) SWITCH
Versatile, fixed-configuration enterprise switching platforms
The EX4300 Ethernet Switch is a single platform offering maximum flexibility required for today’s enterprise.
EX4300 1 Gigabit Ethernet (GbE) switches are compact, fixed-configuration platforms that can be deployed as standalone systems or as part of a Virtual Chassis or Virtual Chassis Fabric switching architecture, satisfying a variety of high-performance campus and data center access needs.
Virtual Chassis technology enables any combination of up to 10 EX4300 and EX4600 switches to be interconnected as a single, logical device that delivers a highly scalable, cost-effective solution for 1GbE or mixed 1GbE/10GbE/40GbE environments.
The EX4300 can also be used in a QFX5100-based Virtual Chassis Fabric switching architecture, which enables up to 20 interconnected EX4300, QFX3500, QFX3600, and QFX5100 switches to operate as a low-latency, high-performance 1GbE/10GbE/40GbE data center fabric that is managed as a single device.

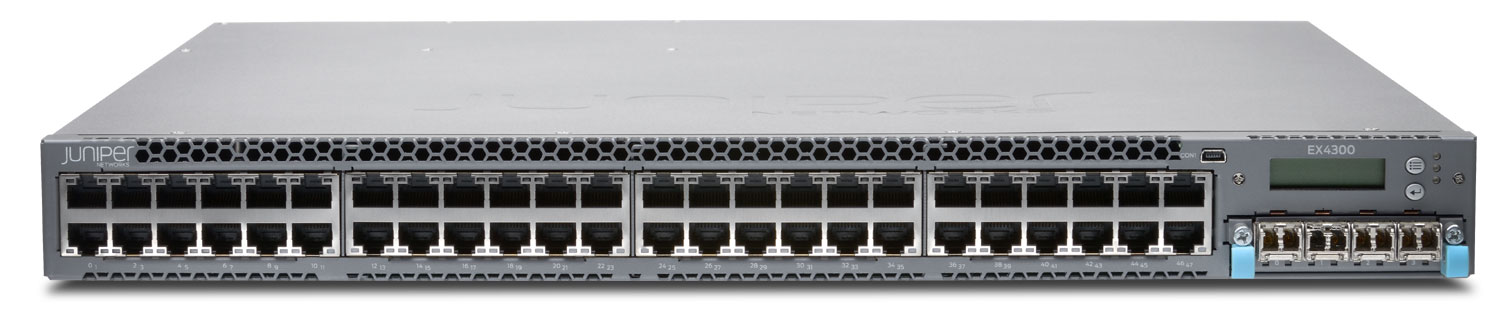

The EX4300 line features 24 and 48-port 10/100/1000BASE-T models and a 32-port 100BASE-FX/1000BASE-X SFP model. On the fiber-based switches, four fixed front-panel uplink ports accommodate 1GbE or 10GbE optics for high-speed backbone or link aggregation connections. The four 40GBASE QSFP+ ports available on each model can also be used for high-speed backbone or link aggregation connections. Power over Ethernet (PoE)-enabled EX4300 models offer standards-based 802.3at PoE+, delivering up to 30 watts on all ports for supporting high-density IP telephony, surveillance camera, or wireless access point deployments.
• Field-proven Juniper technology: A carrier-class architecture, coupled with the Junos OS, enables EX Series Switches to provide carrier-class reliability for every application.
• Security risk management integrates Unified Access Control to help EX Series Switches dynamically deliver network protection, guest access, and identity-based QoS.
• Wire-speed performance at high 1GbE, 10GbE, and 40GbE port densities dramatically simplifies network topologies and operations.
• Eight QoS queues per switch port ensure proper prioritization of voice, video, and multiple levels of data traffic, with room to converge other networks, such as building automation and video security systems.
• Innovative, cost-effective switch design enables new architectures that reduce cost and complexity, while unified management and automation tools consolidate system monitoring.
• Virtual Chassis and Virtual Chassis Fabric technologies on select models allow interconnected EX Series and QFX Series Switches to operate as a single, logical device, reducing operational expenses and simplifying management.
• Support IEEE 802.1ae MACsec for link-layer data confidentiality, data integrity, and data origin authentication, enabling 88 Gbps of near line-rate hardware-based traffic encryption on all GbE and 10GbE ports.
| Form Factor | Fixed platform Virtual Chassis configuration consisting of up to 10 switches |
|---|---|
| Dimensions (W x H x D) | 17.4 x 1.7 x 16.4 in (44.2 x 4.3 x 41.7 cm) 1 rack unit |
| Backplane Speed | 320 Gbps (Virtual Chassis) |
| Data Rate | EX4300-24P/24T: 448 Gbps EX4300-48P/48T: 496 Gbps EX4300-32F: 464 Gbps |
| Throughput | EX4300-24P/24TF: 333 Mpps (wire speed) EX4300-48P/48T: 369 Mpps (wire speed) EX4300-32F: 345 Mpps (wire speed) |
| 40GBASE QSFP + Port Densities | 4 per switch Up to 20 in Virtual Chassis configuration (assuming 2 ports per switch are used for forming Virtual Chassis) |
| 100GBASE CFP Port Densities | N/A |
