JUNIPER: EX3400 ETHERNET SWITCHES

Serving high-volume data, voice, and video enterprise environments

Compact, cost-effective, easy-to-manage access switches that perform like higher-end platforms.

Categories: Communication, Switches Tags: Communication, Juniper, Network, Switches

EX3400 Ethernet Switches are a cost-effective solution for today’s most demanding converged data, voice, and video enterprise access networks. The compact, fixed-configuration 1U devices offer levels of performance and management previously available only with high-end access switches.

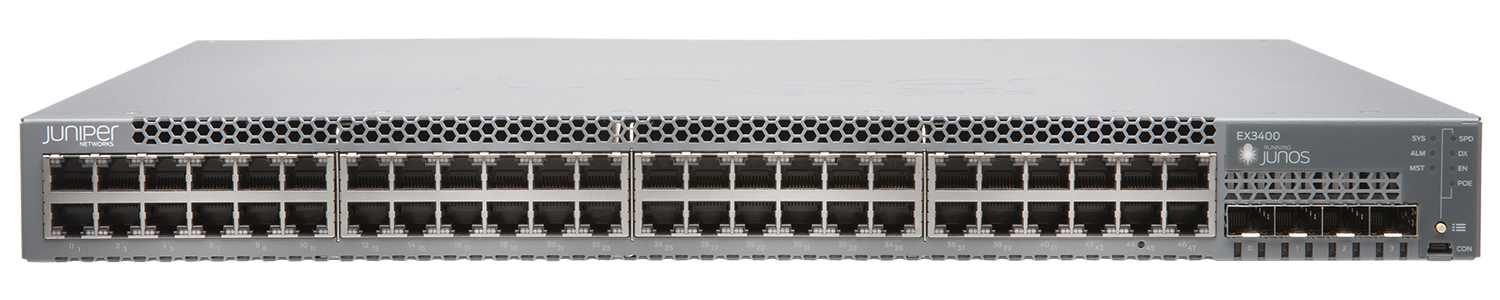

Featuring models offering either 24 or 48 10/100/1000BASE-T ports, the EX3400 switches also support IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+ for powering networked telephones, video cameras, wireless LAN access points, and other IP devices. Four front-panel dual-mode (GbE/10GbE) SFP/SFP+ uplink ports and two 40GbE QSFP+ ports are also available for connecting the switches to upstream devices.

The EX3400 supports Juniper’s unique Virtual Chassis technology for interconnecting up to 10 switches that can be managed as a single device. The EX3400 can also be configured as a satellite device in a Junos Fusion Enterprise deployment, which aggregates large numbers of access switches into a logical management platform.

• Innovative switch design reduces cost and complexity, while unified management and automation tools consolidate system monitoring.

• With Virtual Chassis technology, multiple interconnected EX Series switches function as a single, logical device, reducing operational expenses and simplifying management.

• When deployed as satellite devices in Junos Fusion Enterprise environment, large numbers of EX3400 switches can be managed from a single interface.

• Based on a field-proven Juniper carrier-class architecture and the Junos OS, EX Series Switches deliver carrier-class reliability for every application.

• Eight QoS queues per switch port ensure proper prioritization of voice, video, and multiple levels of data traffic. They also leave room to converge other networks, such as building automation and video security systems.

• High 1GbE and 10GbE port densities and wire-speed performance provide flexibility in creating network topologies.

Form Factor	Fixed platform Virtual Chassis configuration consisting of up to 10 switches
Dimensions (W x H x D)	17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) 1 rack unit
Backplane Speed	160 Gbps
Data Rate	EX3400-24P/24T/24T-DC: 288 Gbps EX3400-48P/48T: 336 Gbps
Throughput	EX3400-24P/24T/24T-DC: 214 Mpps (wire speed) EX3400-48P/48T: 250 Mpps (wire speed)
40GBASE QSFP + Port Densities	2
100GBASE CFP Port Densities	N/A
